TESTO Refrigerant valve with Bluetooth – for digital refrigerant scale 560i (0560 5600)

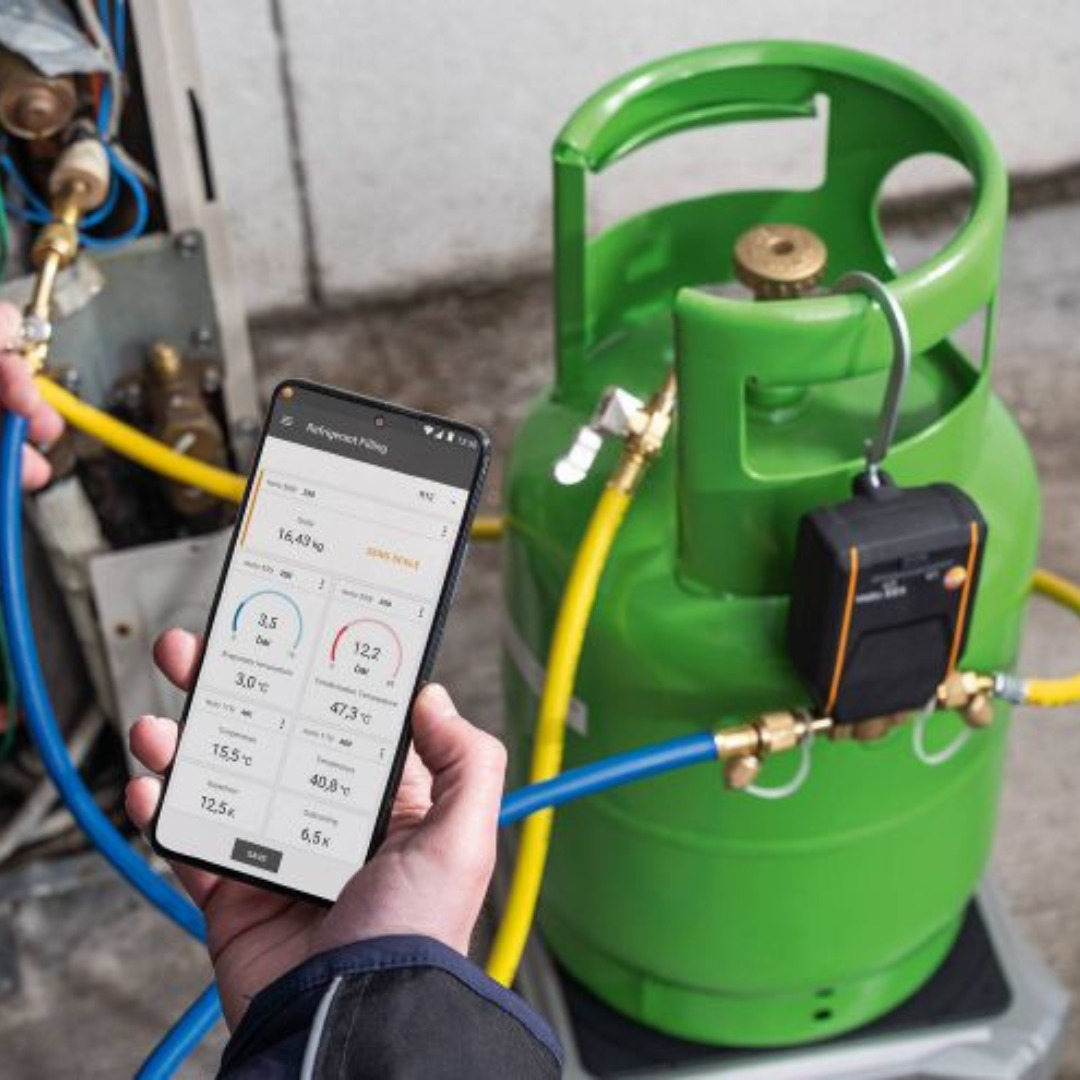

• Intelligent Bluetooth valve for digital refrigerant scale testo 560i (available separately or as a kit) for automatic and precise refrigerant charging of refrigeration systems/heat pumps.
• Easy operation via Testo manifold or testo Smart App with automatic charging programs according to target value superheat, subcooling or refrigerant weight.
• Flexible in confined environments: Valve and scale automatically connect via Bluetooth to the manifold and App on your smartphone/tablet.
• All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App.
• Compatible with testo 560i, manifolds testo 557s/550s/550i as well as testo 557 /550, Smart Probes testo 115i/549 i/605i and testo Smart App for Android and iOS.

Advantages of the refrigerant valve

• Especially robust thanks to IP54
• High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 50 m).

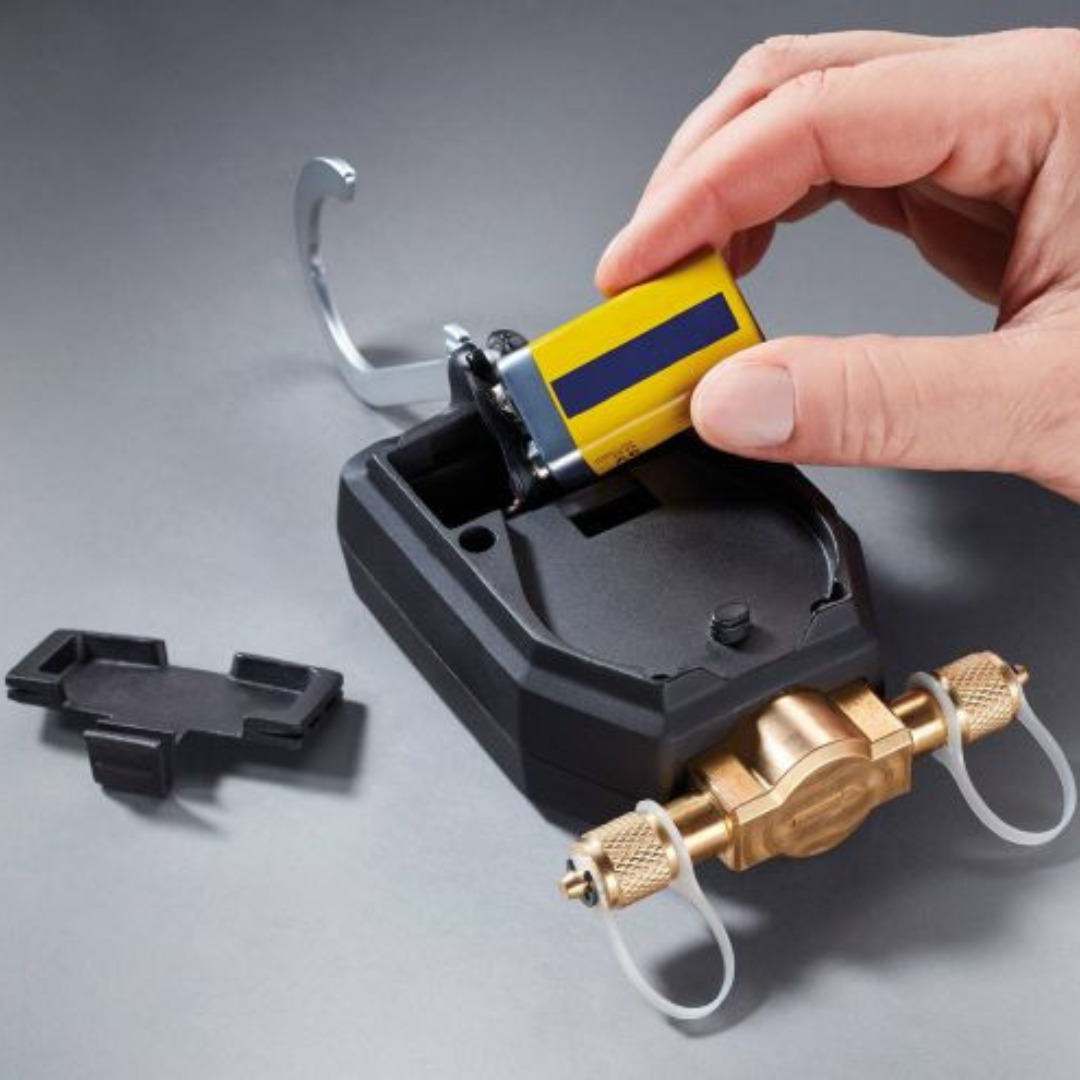

• Long battery life of over 60 hours and replaceable 9 V block battery.

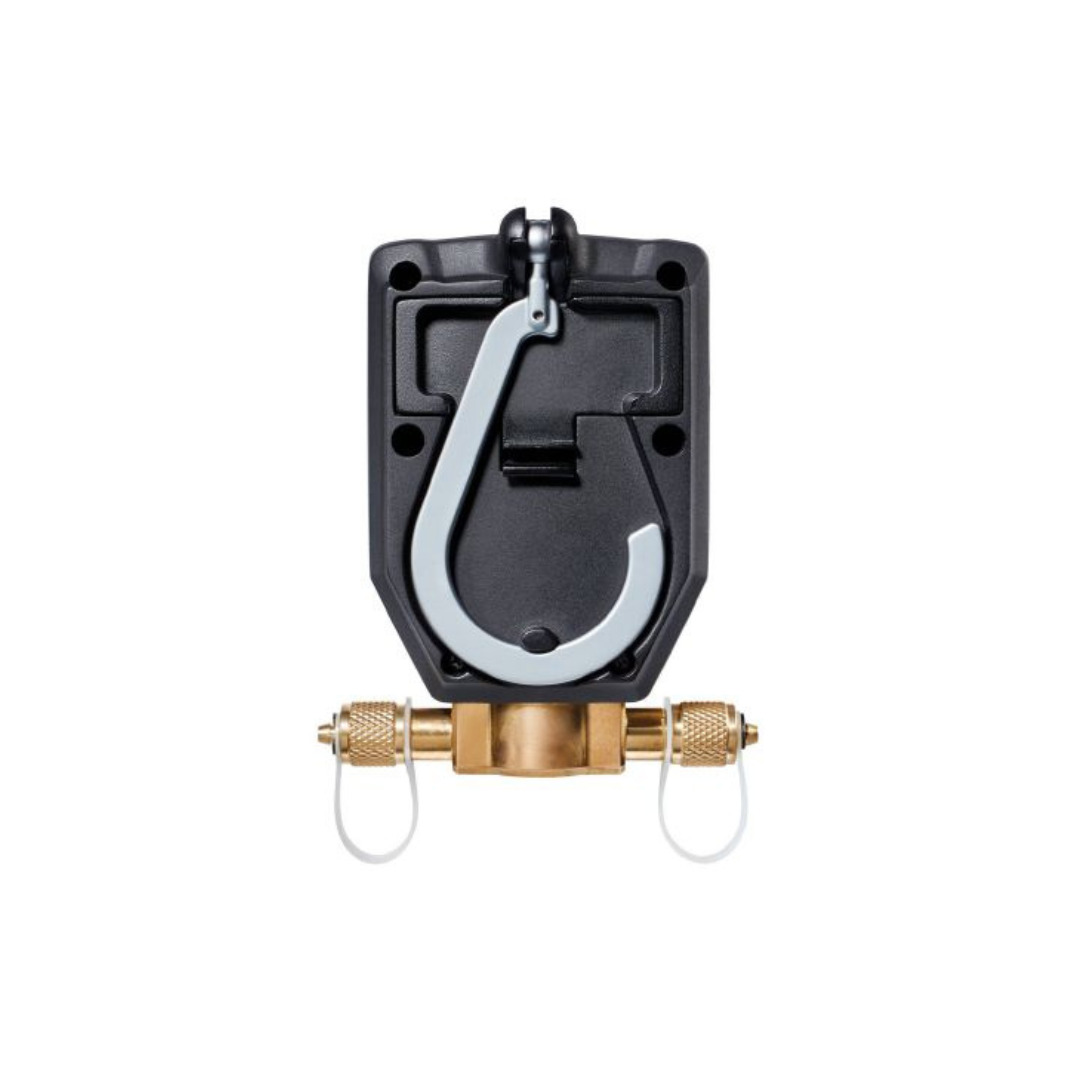

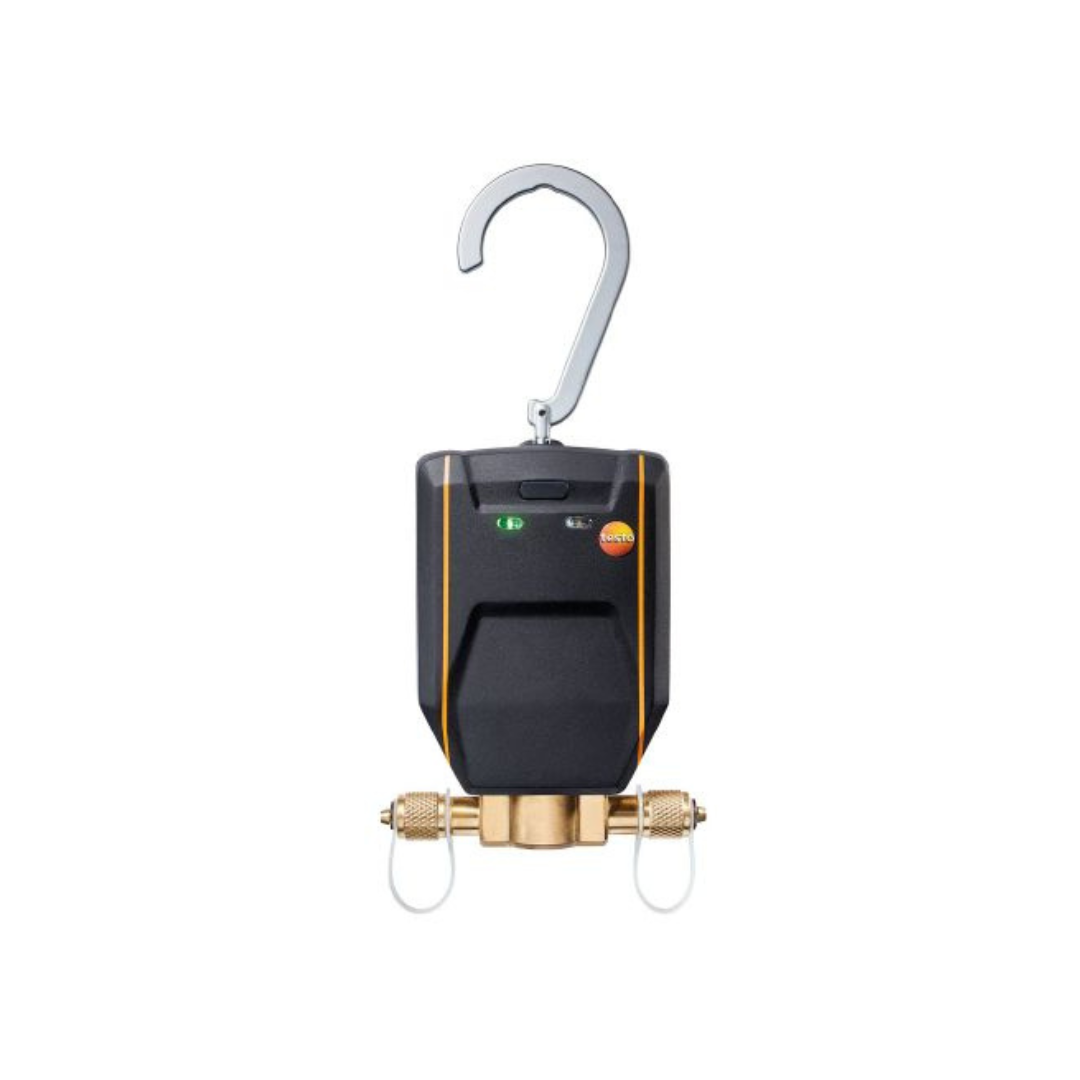

• Very practical due to sturdy hook.

Technical Data

• Operating humidity : 0 to 80 %RH
• Weight : 570 g (incl. batteries)
• Dimensions : 95 x 119 x 47 mm (LxWxH)
• Operating temperature : -10 to +50 °C
• Protection class : IP54
• Product colour : black/orange/silver
• Maximum working pressure : 35 bar
• Battery type : 9 V (6LR61)
• Battery life : >60 hrs + 3000 valve operations
• Interface : Bluetooth® 4.2
• Radio range : 50 m
• Storage temperature : -10 to +50 °C
