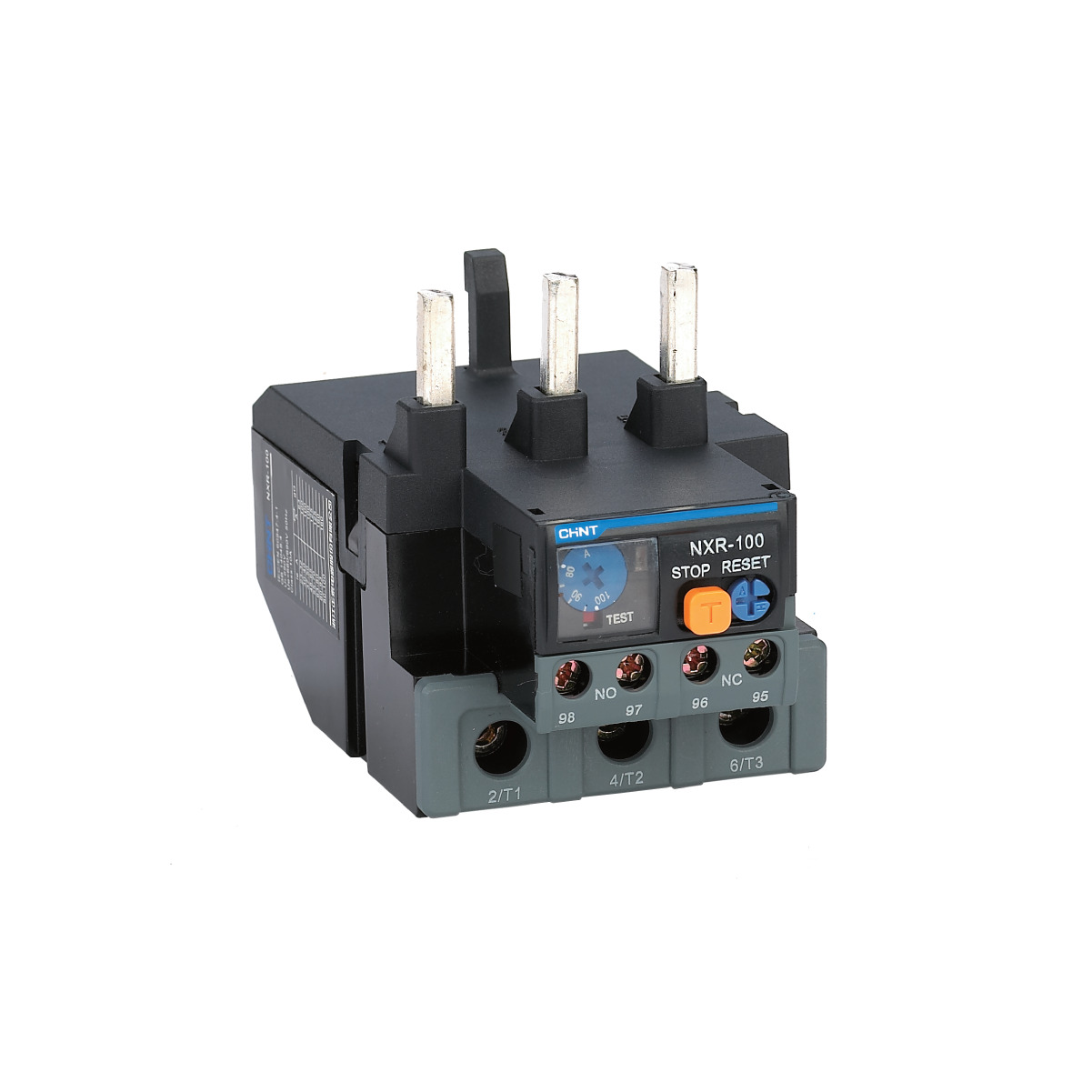

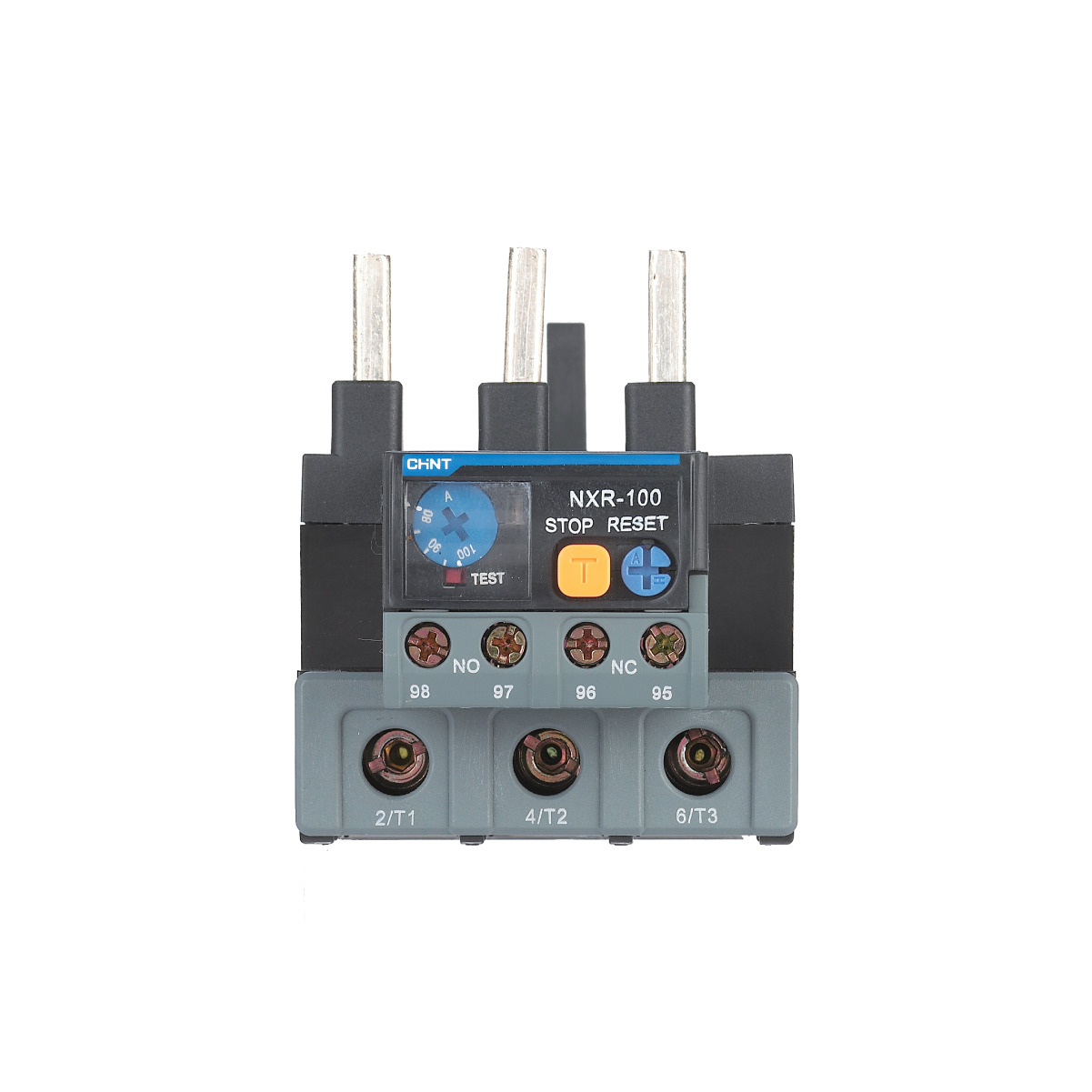

CHINT Thermal Overload Relay (OVERLOAD) NXR-100 63gG, 100gG, 125gG, 160gG, 160gG Rated Current 23 – 100A

Function
NXR thermal overload relays (hereinafter abbreviated as thermal relays) are suitable for overload and phase loss protection for uninterrupted or intermittent AC motors with AC frequency of 50 Hz/60 Hz, a voltage up to 690 V, and a current of (0.1-630)A. The thermal relays also provide temperature compensation, action indication, automatic and manual reset, stop, and testing functions. The products are characterized by stable and reliable performance. The thermal relays can be plugged into contactors or installed independently.

Standards
IEC/EN 60947-4-1, IEC/EN 60947-5-1.

Structural characteristics

• Three-phase bi-metal sheet type or electronic type (NXR-200, NXR-630), with a tripping level of NG
• With phase loss protection
• With a device for continuous adjustment of setting current
• With temperature compensation
• With action indication
• With testing mechanism
• With stop bottom
• With manual and automatic reset button (NXR-200 and NXR-630 only have manual reset)
• With one NO contact and one NC contact that are electrically separable
• Installation method: Plugged into contactor (NXR-12, 25, 38, 100) or installed independently (NXR-200, 630)
• Protection characteristics
