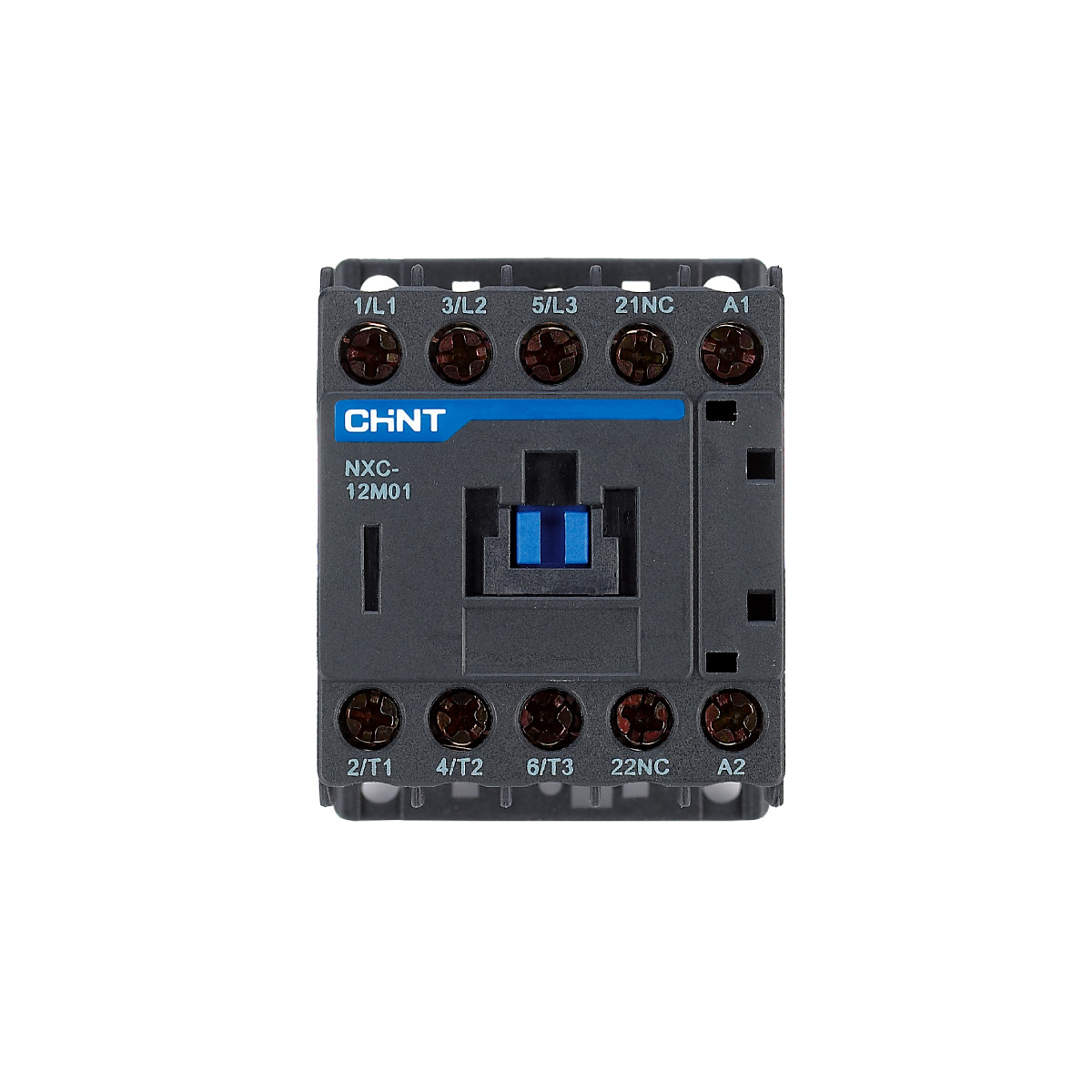

CHINT Contactors AC (MAG) NXC (06M01-12M01) 230V 50/60 Hz

Function
NXC AC contactors feature a novel appearance and a compact structure. They are mainly used for frequent starts and control of AC motors as well as remote circuit making /breaking. They can also be combined with appropriate thermal overload relays to form electromagnetic starters.

Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1

Technical parameters

• Rated operation current Ie : 6A~630A
• Rated operation voltage Ue : 220V~690V
• Rated insulation voltage : 690V (NXC-06M~100), 1000V(NXC-120~630)
• Number of poles : 3P and 4P (only for NXC-06M~12M)
• Coil control method : AC (NXC-06(M)~225), DC (NXC-06M~16M), AC/DC (NXC-265~630)
• Installation method : NXC-06M ~ 100 rail and screw installation, NXC-120 ~ 630 screw installation
