What is District Cooling, and How Can Alfa Laval Plate Heat Exchangers Help Save Energy?

Energy costs are a critical factor in production, management, maintenance, and other areas. The rising focus on reducing energy expenses has led to innovations and technologies designed to maximize efficiency and minimize costs. Additionally, new approaches to energy management aim to achieve optimal utilization with minimal expense.

As global energy consumption increases yearly, much of this energy comes from fuel sources like oil, coal, and natural gas. These processes generate heat and carbon emissions, contributing to global warming and greenhouse gas effects.

In Thailand, the demand for electricity alone is approximately 12,000 megawatts. The Electricity Generating Authority faces challenges in building power plants quickly enough to meet demand. Historically, electricity production focused solely on generation and transmission without considering heat losses. For instance, only 50% of fuel energy converts to electricity, with the rest wasted as heat. Utilizing this excess heat could enhance energy efficiency and reduce environmental heat pollution.

What is District Cooling?

District Cooling refers to a system where waste heat from power plants is used to produce chilled water. This water is then distributed for air conditioning, eliminating the need for individual cooling systems in buildings. This significantly reduces electricity demand, as cooling systems typically consume half of a building’s total electricity usage.

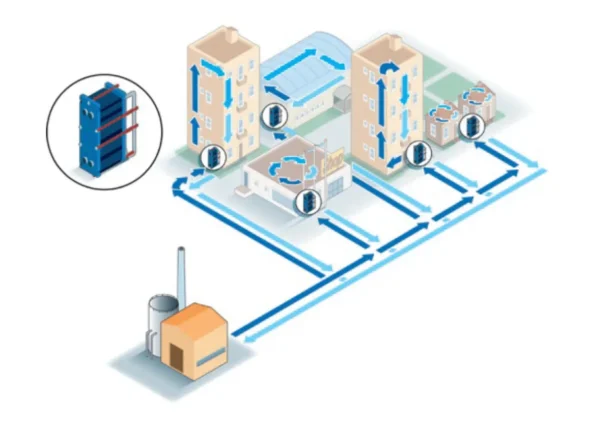

Alternatively, District Cooling can be defined as producing cooling or heating at a centralized facility and distributing it through insulated underground pipes to multiple users in a designated area. The system’s high efficiency combines electricity, heat, and cooling production, making it ideal for areas with high and stable heating or cooling demand.

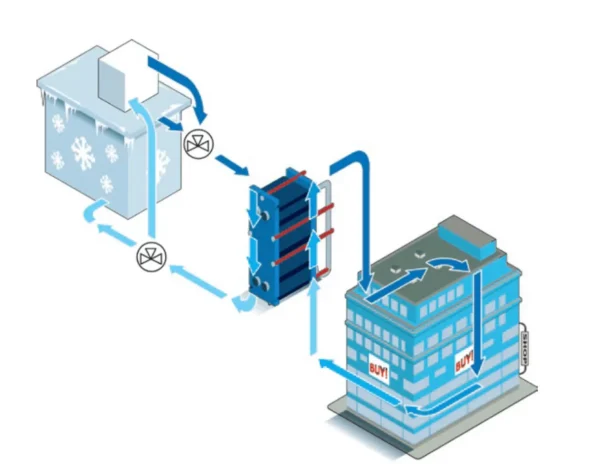

How Does a District Cooling System Work?

District Cooling operates from a single central source, making it suitable for multiple buildings. The system provides flexibility and convenience, allowing each building to adjust its cooling needs without worrying about the size or capacity of individual cooling units.

The system’s energy efficiency lies in the Alfa Laval plate heat exchanger, which transfers nearly all the cooling energy to the building with minimal loss. By employing a “close approach” design, Alfa Laval minimizes energy loss, achieving temperature exchange within 0.5°C (<0.9°F).

Why Choose District Cooling?

Economic Benefits

• Space-saving End-users benefit from saving space as no individual cooling units are needed.
• Flexibility Buildings can control cooling requirements independently.
• Cost reduction Maintenance, equipment repair, and replacement costs are minimized.

Environmental Benefits

• Reduces reliance on Freon refrigerants, which harm the ozone layer.
• Encourages the transition to environmentally friendly systems.
• Decreases Freon emissions by reducing the number of refrigerant-based cooling units.

Key Cooling Sources for District Cooling Systems

Absorption Chillers

These utilize excess heat (e.g., waste heat) to provide cooling. They replace Freon with water and lithium bromide, which are both cost-effective and eco-friendly.

• The refrigerant (water) absorbs heat energy, cooling the air conditioning system.
• Lithium bromide absorbs refrigerant vapor, and the mixture undergoes heat exchange through Alfa Laval plate heat exchangers for efficient cooling.

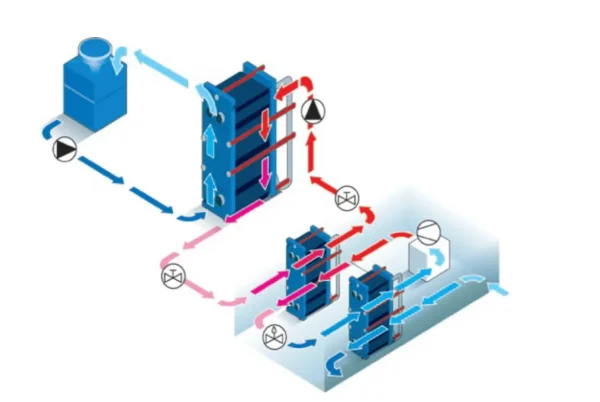

Cooling Towers

Integrating Alfa Laval plate heat exchangers with cooling towers offers several advantages:

• Low system costs with rapid return on investment.
• Reduced material costs for condensers.
• Optimized chiller and cooling tower operations.
• Minimized chemical water treatments.
• Simplified condenser maintenance.

Thermal Energy Storage

Ice or chilled water storage systems allow energy to be stored and used later. Benefits include:

1. Smaller cooling equipment can meet fluctuating daily demand, lowering initial costs.
2. Nighttime energy usage reduces costs in regions with off-peak electricity rates.

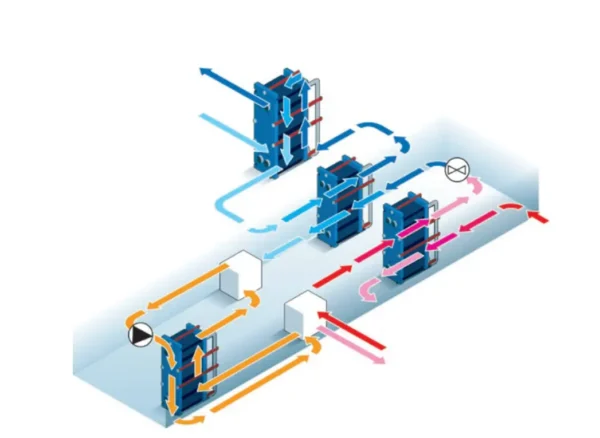

How Do Alfa Laval Plate Heat Exchangers Save Energy?

Alfa Laval plate heat exchangers, installed between the condenser and the cooling source, recover energy that would otherwise be lost to the air. This reclaimed heat is reused for hot water production, reducing the cooling demand on the condenser. This dual benefit saves energy in both heating and cooling systems.

Benefits of Alfa Laval Plate Heat Exchangers

• Recover 95% of energy with minimal loss.
• Achieve high efficiency with near-identical temperature exchange (<1°C).
• Minimize scaling risks.
• Compact and modular design saves space and allows easy on-site adjustments.
• Occupies only 30% of the space compared to traditional shell-and-tube heat exchangers.

Conclusion

District Cooling is a centralized system for producing and distributing cooling or heating to multiple users, providing flexibility, convenience, and efficiency. Alfa Laval plate heat exchangers enhance this system by recovering waste energy and reusing it, reducing overall energy loss in both heating and cooling.
